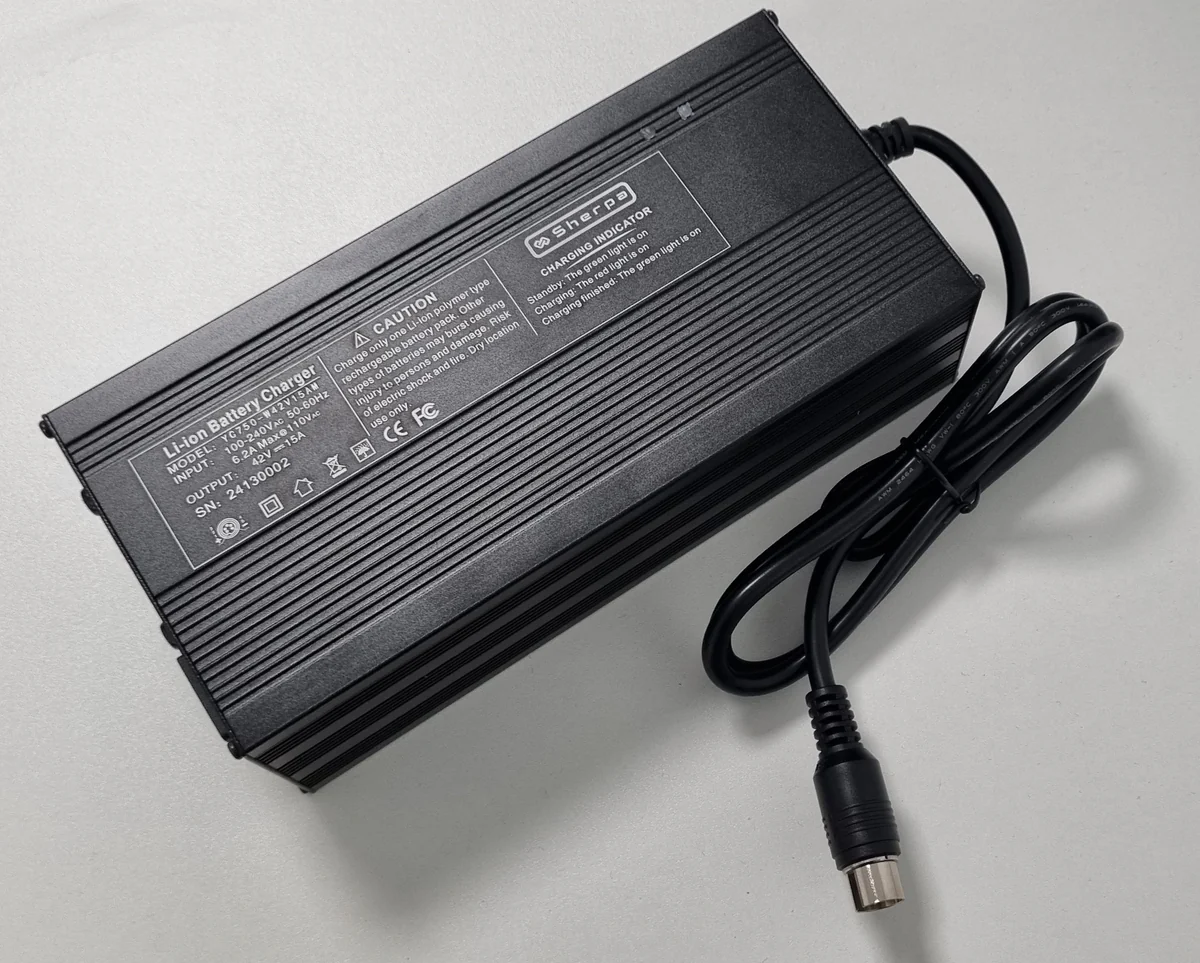

AC to DC Charger

630W output

£85.00

The AC-DC Charger is designed to charge the PEAK 3.0-EB and PEAK 2.2 units from a grid or generator supply to the DC input. It is converts the mains input to DC charge that is accepted by the in-built MPPT of your Sherpa Portable Power units via the GX16MT port. The AC-DC Charger is a useful accessory when you need to cover all possible charging options. The AC-DC Charger works with 100-240V mains inputs and outputs 42V 15A (630W) DC. It will regulate irregular AC from certain generator units so you can safely charge your Sherpa Power units via their DC port, without damaging them.

The AC-DC Charger has a GX16MT connector, outputting 630W direct current (DC) power to the battery.

Key Features

💡 Output (DC)
42V, 15A

🔌 Input (AC)
100-240V, 3A

🛡️ Warranty 5 Years

⚖ Weight 3kg

Items included

1 x AC-DC Charger
1 x 1m 13A 240V input cable

Input:

100-240V, 3A Max

Output:

42V, 15A Max

Power:

630W

Protection:

Short-circuit, high voltage, low voltage, overheat

Operating Temperature:

-10°C~55°C/14°F~131°F

Storage Temperature:

10°C~45°C/50°F~113°F

Heat Dissipation:

Fan cooled

Length (L):

215mm

Width (W):

100mm

Height (H):

65mm

Weight:

3Kg
