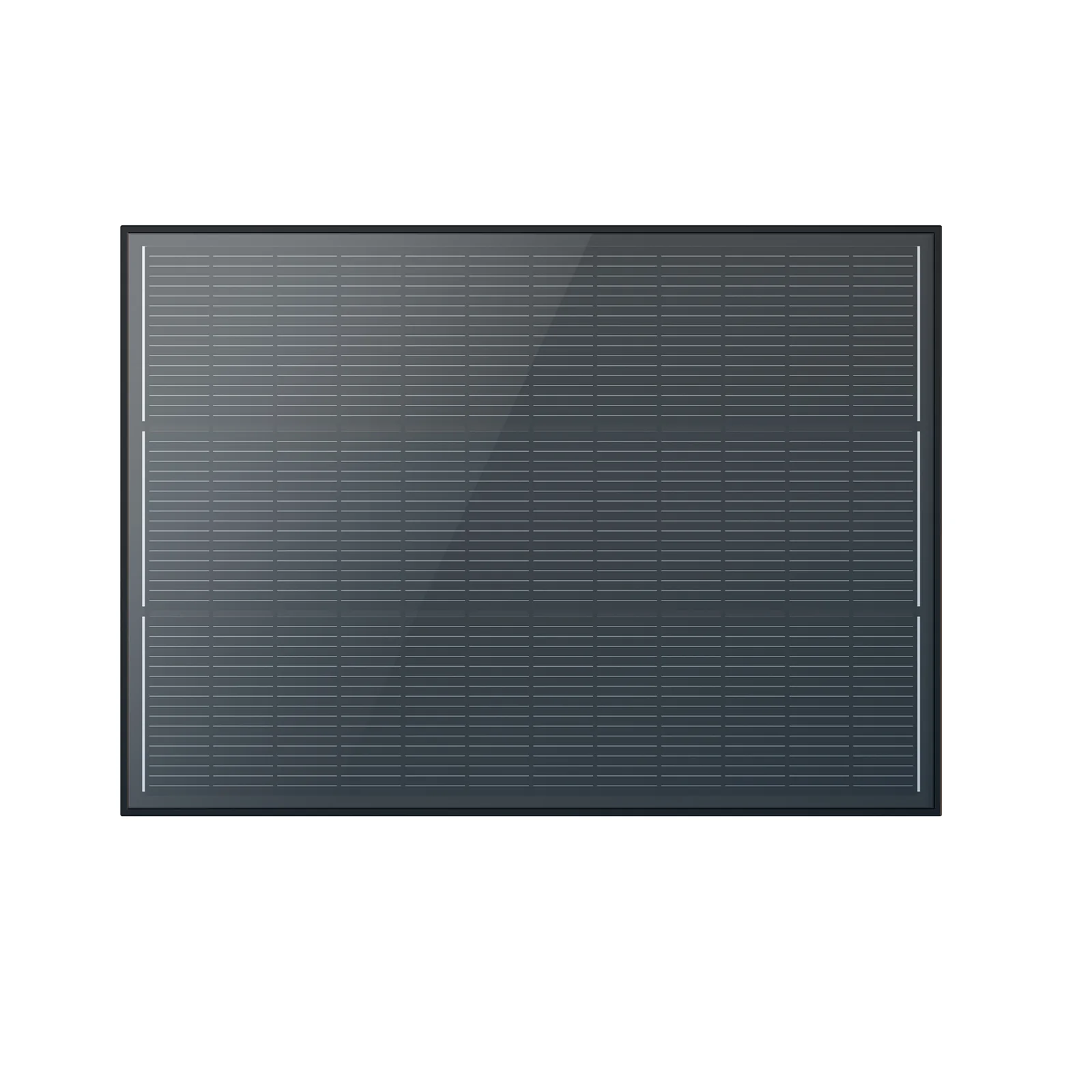

AFERIY AF-SG120 120W Monocrystalline Glass Solar Panel

AFERIY AF-SG120 120W Monocrystalline Glass Solar Panel

– Durable, High-Efficiency Solar for Permanent & Mobile Installations

Power your off-grid lifestyle, van life, or home backup system with the AFERIY AF-SG120 120W Monocrystalline Glass Solar Panel – a rugged, high-performance solar solution built to deliver reliable energy in all conditions. Designed for durability and maximum efficiency, this single-glass solar panel is ideal for permanent rooftop installations, motorhomes, caravans, sheds, and cabins, especially in the challenging UK climate.

With 23% high conversion efficiency, IP68 waterproofing, and a robust tempered glass design, the AF-SG120 is engineered to withstand rain, snow, wind, and years of daily use — all while generating clean, renewable energy.

120W High-Efficiency Monocrystalline Performance

Harness the sun’s power like never before with 120 watts of reliable solar output. The AF-SG120 uses premium monocrystalline silicon cells with MWT (Multi-Busbar) technology to achieve up to 23% energy conversion efficiency — among the highest in the industry.

Even on cloudy or low-light days, this panel continues to generate significant power, making it perfect for year-round use across the UK and Ireland.

> Key Electrical Specs:

> - Rated Power: 120W

> - Vmp (Voltage at Max Power): 18.9V

> - Imp (Current at Max Power): 6.35A

> - Open Circuit Voltage (Voc): 22.8V

> - Short Circuit Current (Isc): 6.6A

Built to Last – Rugged & Weatherproof

Unlike foldable fabric panels, the AF-SG120 is a solid, glass-fronted solar panel designed for long-term, permanent installations.

- Tempered glass surface – Resists impact, hail, and scratches

- Anodized aluminum frame – Corrosion-resistant and built for outdoor durability

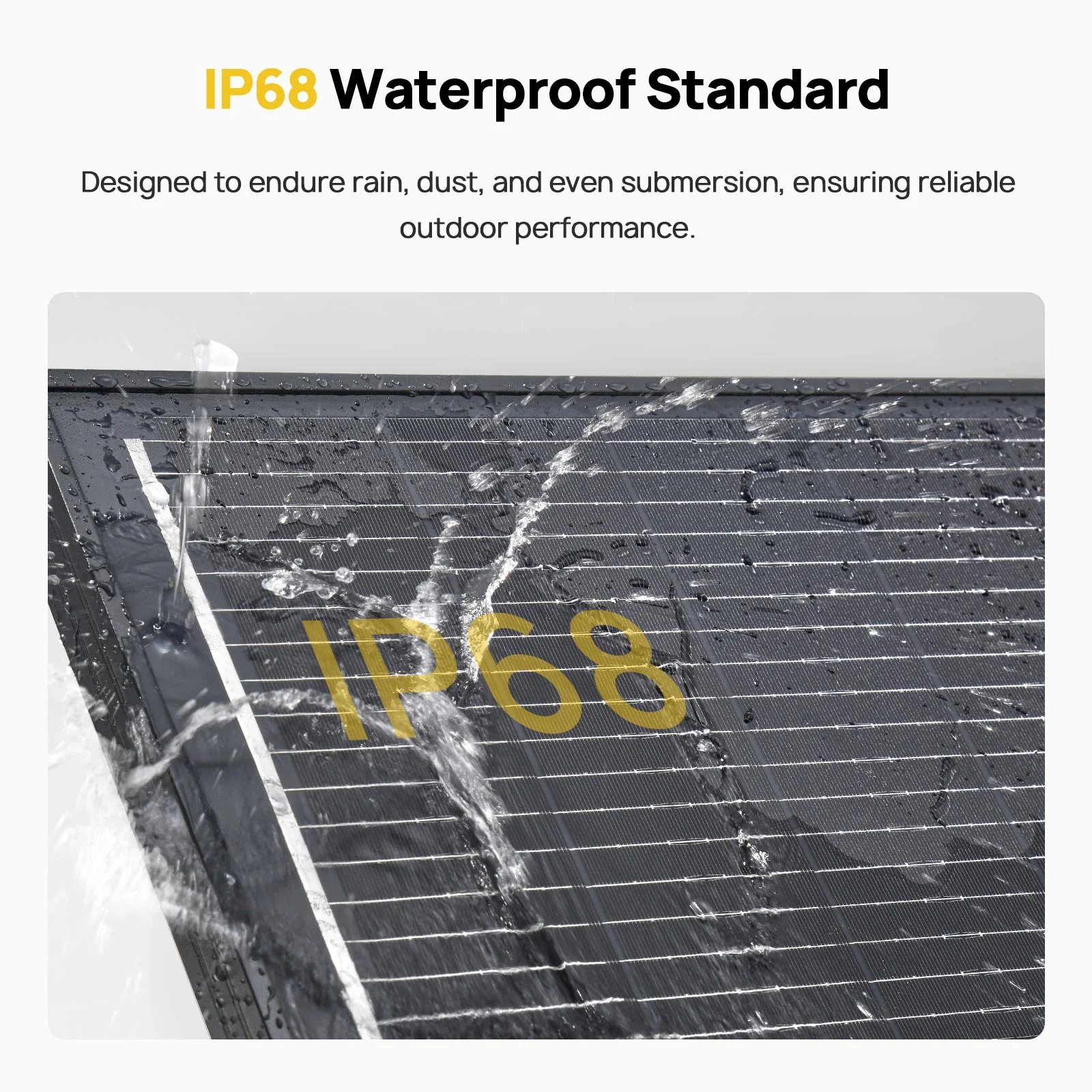

- IP68 Waterproof Rating – Fully protected against dust and water immersion (ideal for harsh weather)

- Operating Temperature: -10°C to +60°C – Performs reliably in extreme conditions

This is solar power that stands strong — whether mounted on a roof, balcony, or motorhome.

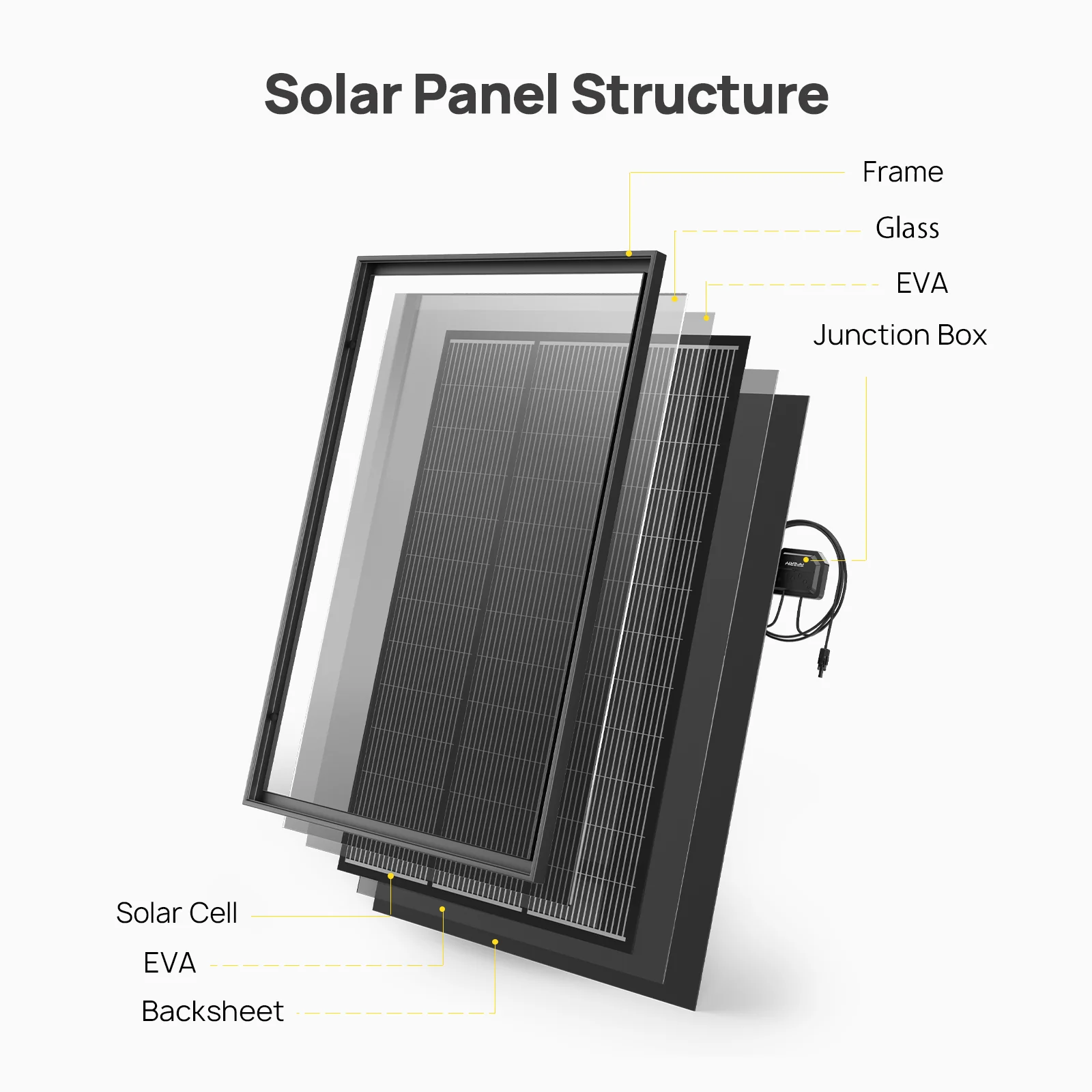

Advanced MWT Technology for Maximum Efficiency

The AF-SG120 features MWT (Metal Wrap Through) lamination technology, which reduces cell resistance and increases light absorption. Combined with 99% light transmittance, this ensures:

- Higher power output in low-light conditions

- Reduced hotspots and energy loss

- Longer lifespan and consistent performance

It’s not just a solar panel — it’s a high-efficiency energy generator.

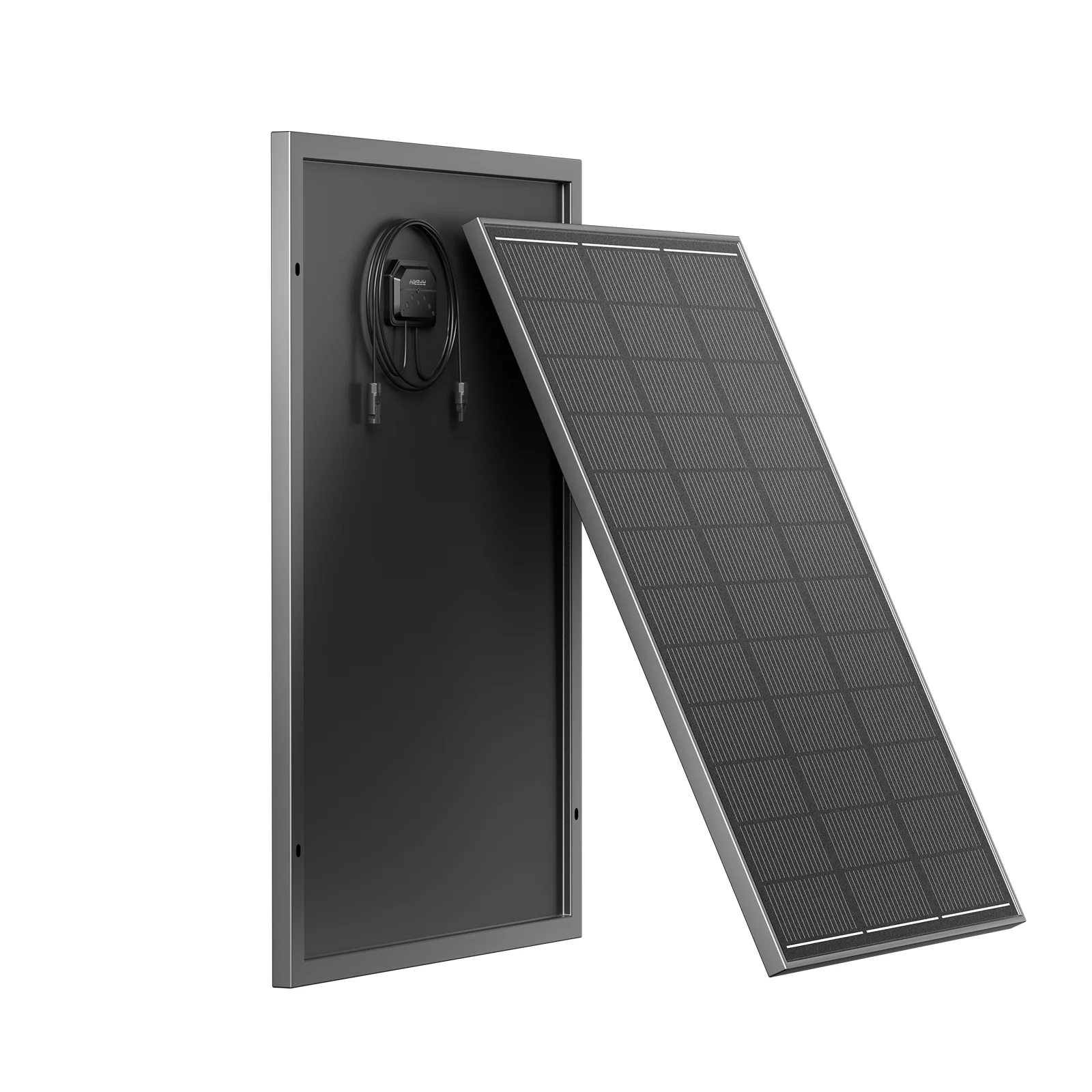

Compact, Lightweight & Easy to Install

Despite its power, the AF-SG120 remains practical and easy to handle:

- Dimensions: 67 x 93 x 2.5 cm (26.4 x 36.6 x 1 inch)

- Weight: Just 3.3 kg (7.3 lbs)

- Pre-drilled mounting holes – Simple to install on roofs, brackets, or frames

> Note: Mounting stand or brackets are not included and must be purchased separately.

Perfect for tight spaces on campervans, narrowboats, sheds, or residential rooftops.

Universal Compatibility – Works with Most Power Stations

The AF-SG120 is designed to charge a wide range of portable power stations and solar generators, including:

- Compatible With AFERIY P110, P210, P310

- other branded power stations that take MC4 input

Equipped with MC4 connectors (included), it easily integrates into any solar setup. Just ensure your power station supports a solar input voltage up to 22.8V (Voc) for safe, optimal charging.

Smart Solar Tips & Best Practices

- Avoid Nighttime Connection: When not in use, disconnect the panel. A connected panel in low light can cause relay noise and consume ~30Wh/hour from your battery.

- Automatic Restart: The system will automatically resume charging at sunrise.

- No Mixing Panels: Do not connect solar panels with different voltages or currents in series or parallel. This can reduce efficiency or void your warranty. Always use identical panels for array setups.

For best results, pair with a compatible charge controller or power station that supports MPPT/PWM regulation.

What’s in the Box

- 1 x AF-SG120 120W Monocrystalline Glass Solar Panel

- 1 x User Manual

- 1 x MC4 Connector Cable

> Mounting hardware and solar charge controller sold separately.

Why Choose the AFERIY AF-SG120?

- ✅ 120W High-Efficiency Output – 23% conversion rate with MWT tech

- ✅ IP68 Waterproof & Durable – Tempered glass & aluminum frame for all-weather use

- ✅ Lightweight & Compact – Easy to transport and install

- ✅ Perfect for Permanent Installations – Ideal for roofs, vans, sheds, and boats

- ✅ MC4 Connectors Included – Ready to connect to your power station

- ✅ 3-Year Warranty – Peace of mind for long-term use

- ✅ Lifetime Customer Support – Always here to help

Free Shipping & 30-Day Guarantee

Enjoy free and fast shipping across the UK on all AFERIY orders. Try the AF-SG120 risk-free with our 30-day money-back guarantee. If it’s not right for your setup, return it for a full refund.

We also offer lifetime technical support — because your energy journey doesn’t end at purchase.

Power That Endures. Energy You Can Trust.

The AFERIY AF-SG120 120W Glass Solar Panel is built for those who demand reliability, efficiency, and longevity from their solar setup. Whether you're powering a campervan, charging your power station, or adding to your home’s energy independence, this panel delivers consistent, clean energy — rain or shine.

Get yours today and take control of your power.
