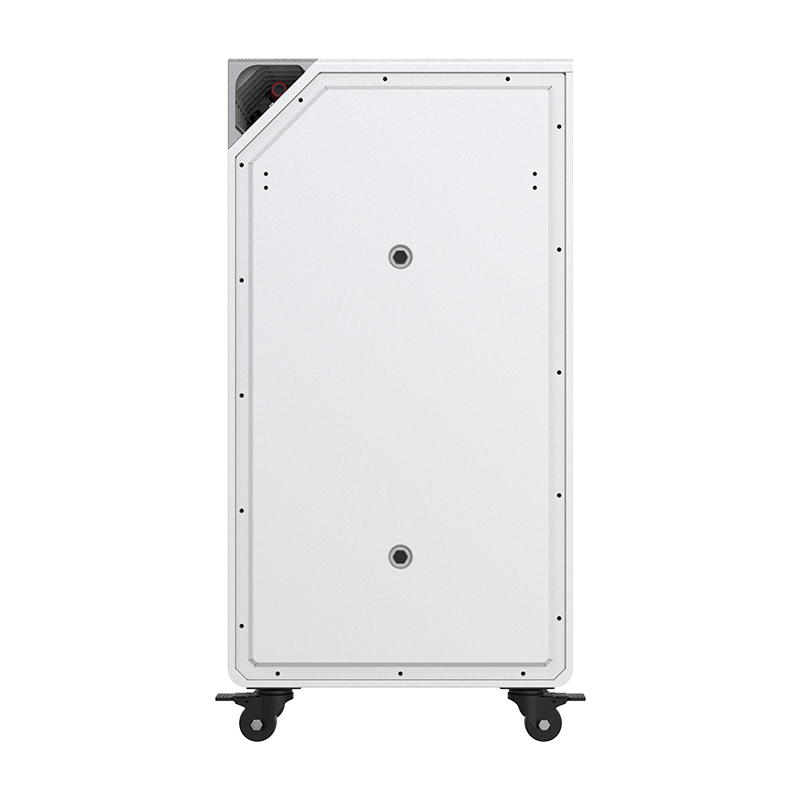

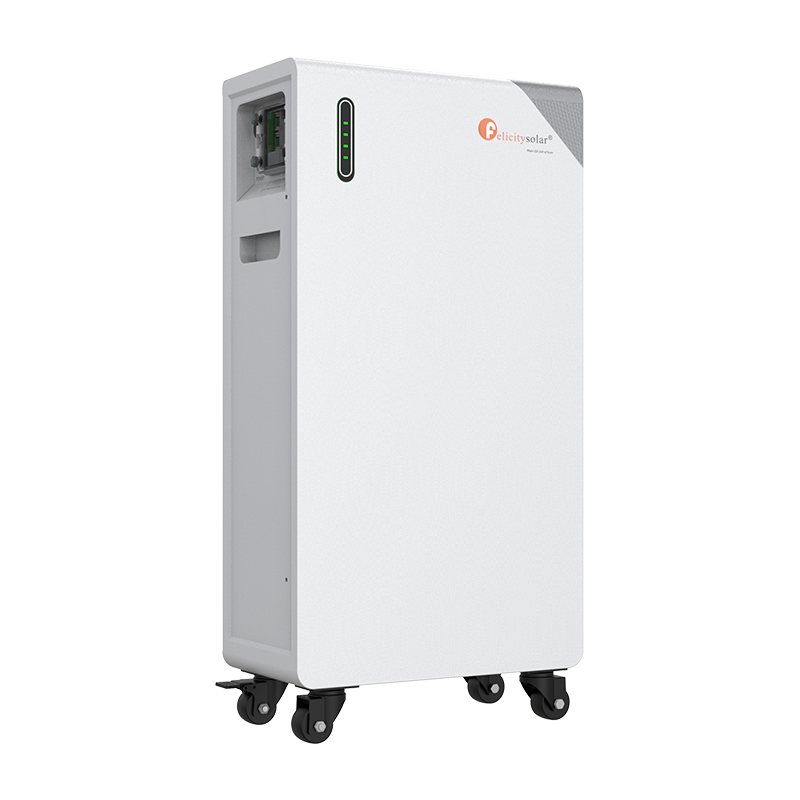

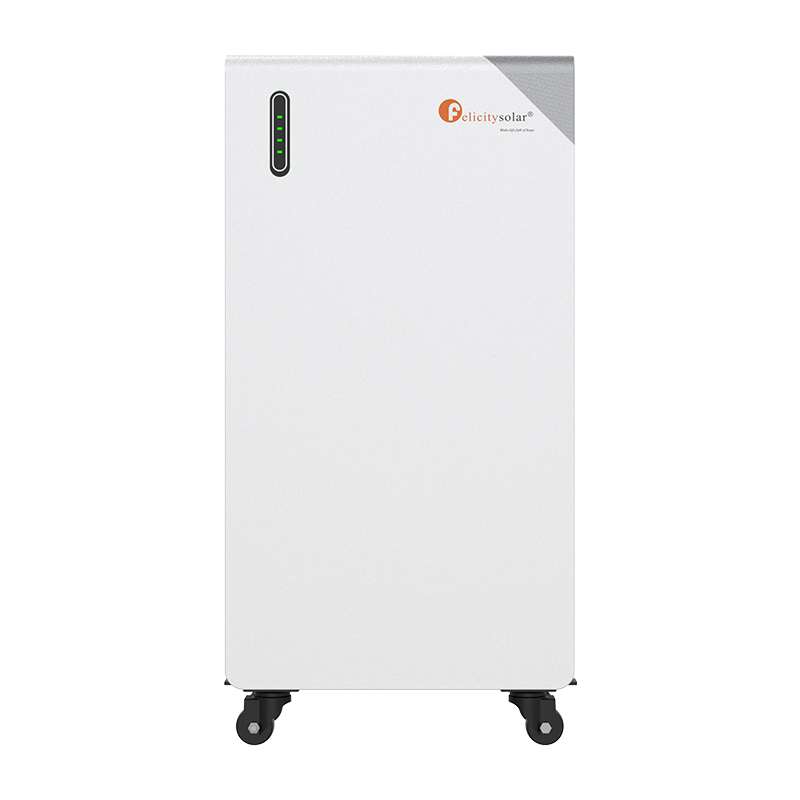

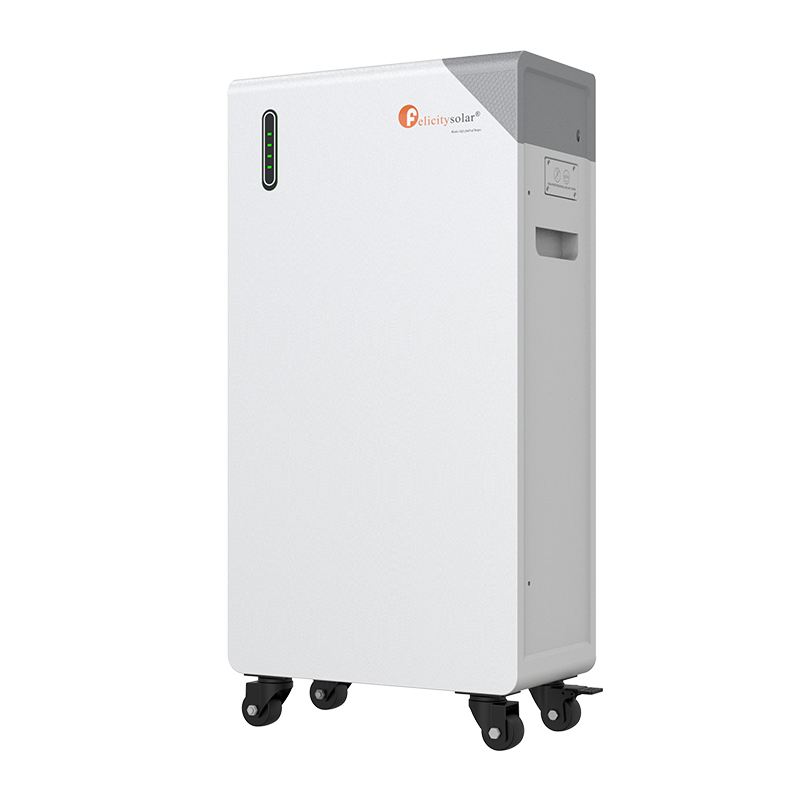

FelicityESS FLB48314TG1 Low Voltage LFP Battery
48V 15kWh | highly expandable | builtin fire extinguisher
£2300.00
Felicity Solar FLB48314TG1
– 48V 16kWh LiFePO₄ Home Battery
Scalable | Smart Monitoring | IP65 Rated | Integrated Fire Suppression
Power Your Home with Intelligence and Safety
The Felicity Solar FLB48314TG1 is a high-capacity, modular energy storage solution designed for residential solar applications where safety, longevity, and performance matter most. Built with premium LiFePO₄ (Lithium Iron Phosphate) chemistry, this 48V battery delivers 16kWh of usable energy (314Ah) and is engineered to withstand over 8,000 deep cycles, making it ideal for daily use in off-grid, hybrid, and backup power systems.
Compact, rugged, and built for harsh environments, the FLB48314TG1 features an IP65-rated enclosure that protects against dust and water ingress—perfect for both indoor and outdoor installations with minimal space requirements.
Key Features at a Glance
🔋 16kWh High-Density Storage
Store more energy in less space with a compact design optimized for home energy independence.
⚡ 8,000+ Life Cycles @ 80% DoD
Enjoy over 20 years of reliable service with long-lasting LiFePO₄ cells known for thermal stability and extended lifespan.
📶 Integrated WiFi & Bluetooth
Monitor your battery’s performance in real time via smartphone or tablet. Enable remote diagnostics and system management with ease.
🧯 Built-in Aerosol Fire Suppression System
Enhanced safety: automatically suppresses internal thermal events before they escalate—protecting your investment and property.
🛡️ Smart BMS Protection
Advanced Battery Management System provides comprehensive protection against overcharge, over-discharge, short circuit, overcurrent, and overheating. Includes integrated fuses and disconnectors for added security.
🔁 Expandable Up to 32 Units in Parallel
Start small and grow your system as needed. Scale your storage capacity up to 512kWh by connecting multiple FLB48314TG1 units.
🔌 Top-Tier Inverter Compatibility
Seamlessly integrates with leading inverter brands including Solax, Growatt, GoodWe, Victron, and Huawei—ensuring flexibility in system design.
❄️ CCS Welded Busbars
Reduced internal resistance through advanced CCS (Copper-Clad Steel) welding technology enhances efficiency and supports high-speed charging/discharging.
🔧 User-Friendly Maintenance
Easily replaceable fuse design allows for quick servicing without full disassembly.
✅ Certified Safe & Reliable
Meets UN38.3 standards for safe transport and operation—trusted for global deployment.
Technical Specifications
- Model: FLB48314TG1
- Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 48V
- Capacity: 314Ah
- Usable Energy: 16kWh
- Cycle Life: >8,000 cycles @ 80% DoD
- Max Parallel Units: 32 (up to 512kWh total)
- Communication: WiFi, Bluetooth
- Protection Rating: IP65 (dust-tight & water-resistant)
- Operating Temperature: -10°C to +55°C
- Fire Safety: Integrated aerosol fire suppression system
- Certifications: UN38.3
- Mounting Options: Wall-mount or rack installation
Why Choose the FLB48314TG1?
Whether you're building a future-proof solar system, preparing for grid outages, or aiming for complete energy autonomy, the FLB48314TG1 combines cutting-edge technology with industrial-grade safety. Its intelligent monitoring, extreme durability, and modular scalability make it one of the most versatile home batteries on the market.
Backed by Felicity Solar’s commitment to innovation and quality, this battery is designed to perform reliably—even in high-temperature environments—while requiring minimal installation space.
Ideal For:
- Residential solar storage
- Off-grid homes and cabins
- Emergency backup power systems
- Hybrid solar installations
- Commercial microgrids and remote facilities
Ready to Scale Your Energy Independence?
The Felicity Solar FLB48314TG1 isn’t just a battery—it’s the foundation of a smarter, safer, and self-sufficient energy future.
📞 Contact us today to request integration guide, or technical support.
📦 In stock and ready for fast delivery across the UK.
