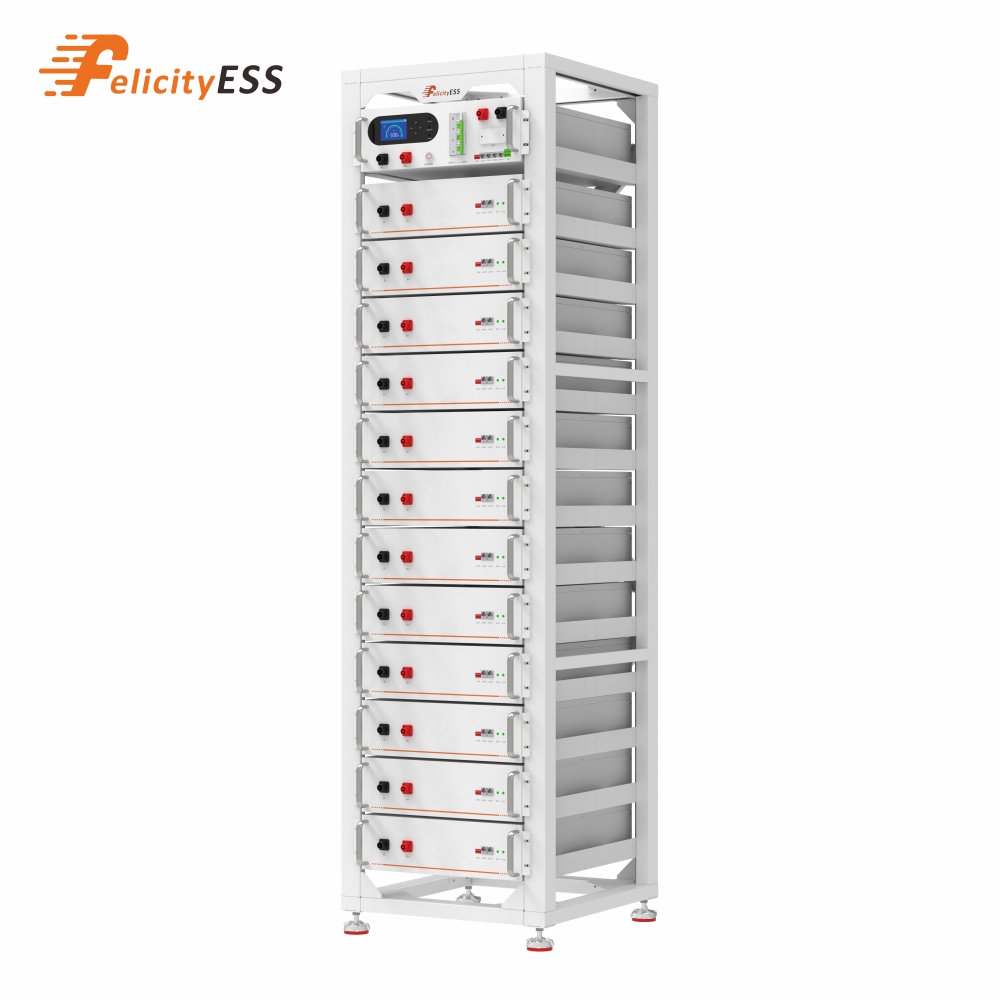

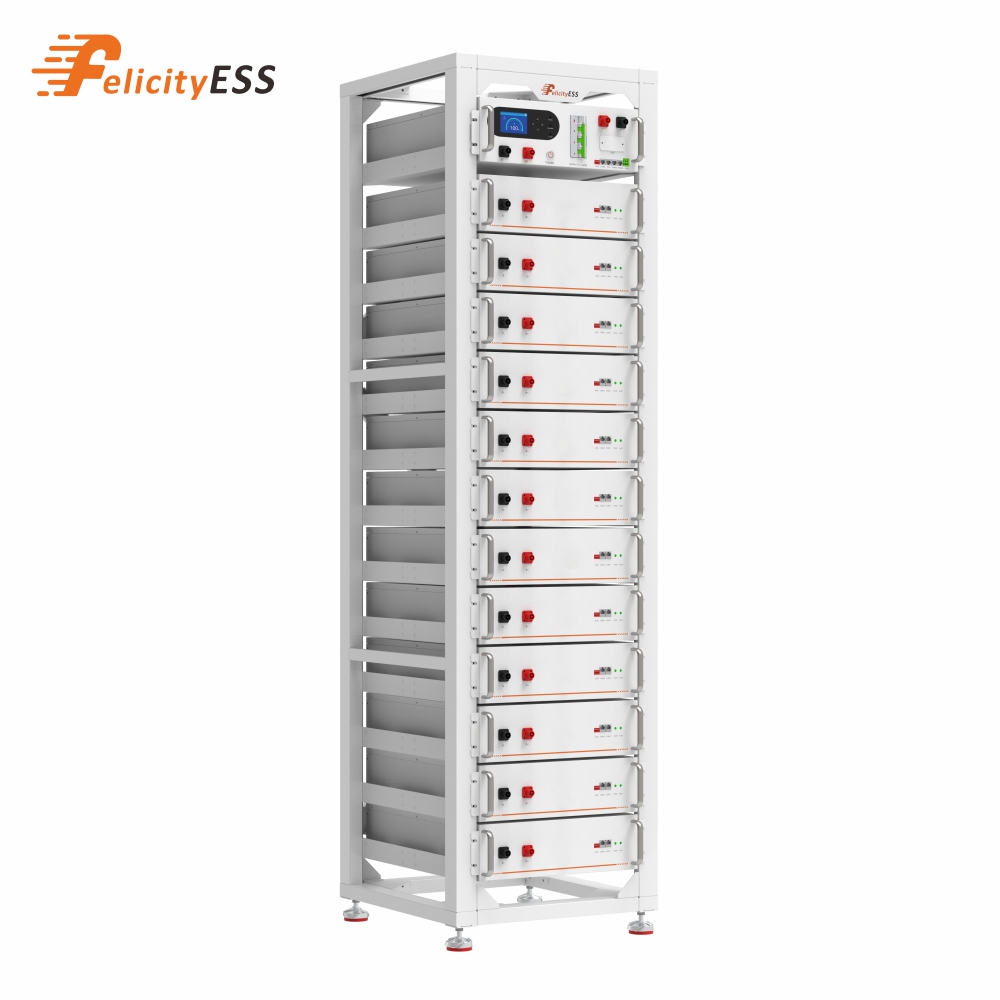

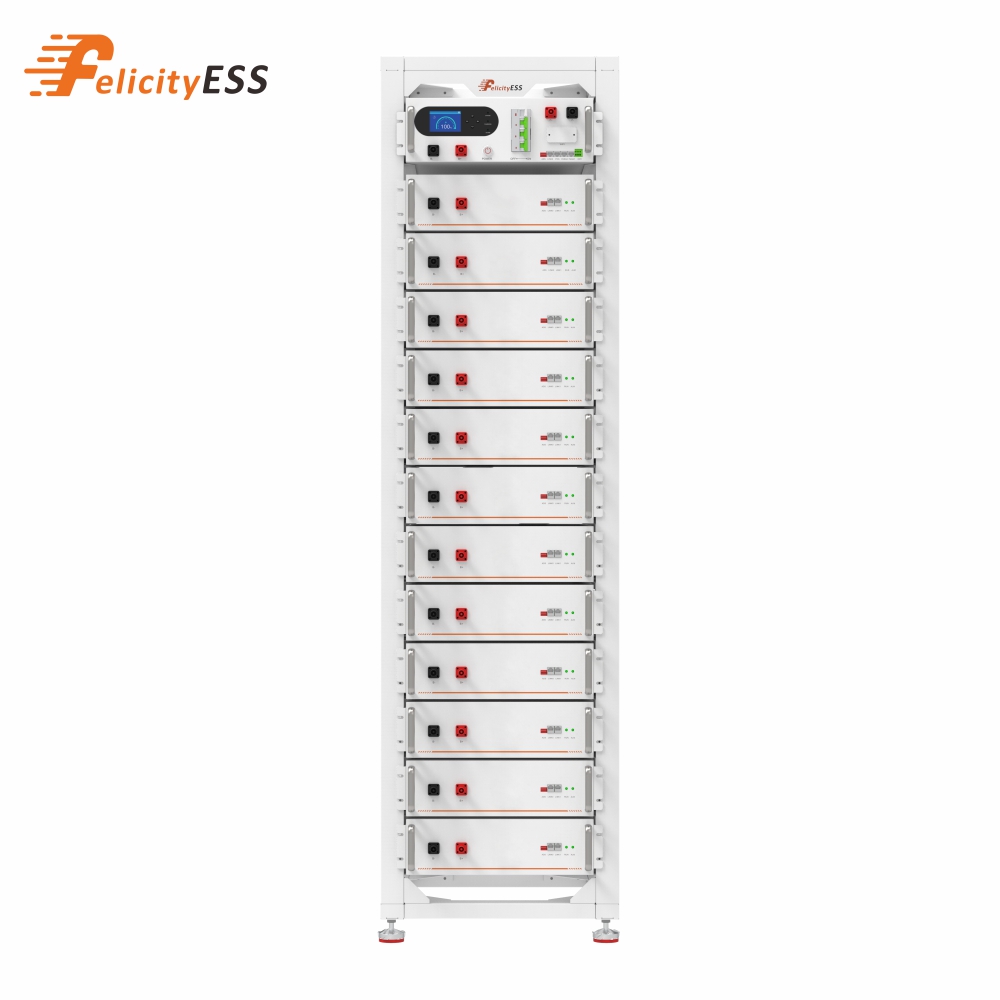

FelicityESS LUX-Y-48100HG01 high voltage stackable LFP battery

FelicityESS LUX-Y Series Stackable LFP Battery

Introduction

The LUX-Y Series Vertical Lithium Battery is designed to meet the high energy demands of family homes, including villas and detached houses, and is also suitable for commercial backup power applications. With advanced technology and a modular design, this system provides stable power support while ensuring safety. Equipped with built-in fire-extinguishing aerosol and intelligent Battery Management System (BMS), the LUX-Y series offers reliable, scalable energy storage for a wide range of applications. It is the perfect companion with the FelicityESS - T-REX-50KHP3G01 Hybrid Inverter. It is also compatible with many well-known inverters, such as Growatt, Solis, Goodwe, Sunsynk and Luxpower etc. making it a flexible solution for home and commercial use. Please double check if your existing inverter is compatible, click here to see the full compatible list.

Key Features

• Built-in BMS and Breaker: Ensures battery safety and management with multiple protection mechanisms.

• Modular Design: Offers high scalability, allowing for system expansion as needed.

• Remote Monitoring: WiFi-enabled for easy remote control and monitoring.

• Fire Extinguishing Aerosol: Provides advanced fire safety to protect property in extreme cases.

• High Scalability: Supports up to 16 clusters for large-scale energy storage.

Specifications

• Model: LUX-Y-48100HG01

• Each Module Energy: 5.12kWh

• Nominal Voltage per Module: 51.2V

• Module Capacity: 100Ah

• System Energy: 20.48 – 61.44kWh

• Scalability: 16 Clusters (up to 983.04kWh)

• DoD: ≥95%

• Cycle life: ≥6000

• Installation: rack mounting

• Protection: IP21, builtin smart BMS, breaker, fuse, fire extinguishing aesorol

• Communication: RS485, CAN

• Operating Temperatures: Discharge: -20°C to +55°C, Charge: +0°C to +55°C

• Control module

  • weight:  10.3KG (Net), 16.7KG (Gross)

  • Dimensions: 482x565x150MM (Product), 687x562x269MM (Package)

• Module

  • weight:  41.3KG (Net), 45KG (Gross)

  • Dimensions: 482x565x131MM (Product), 687x562x250MM (Package)

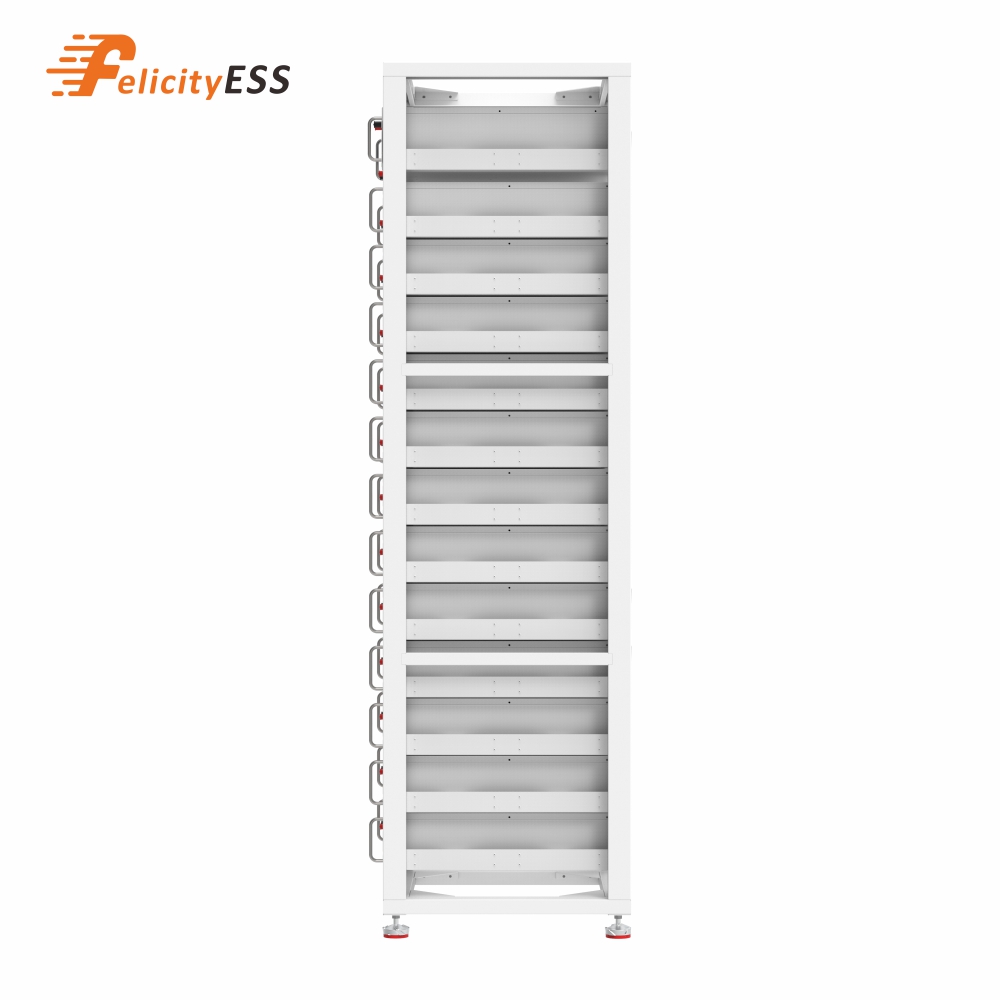

• Rack

  • weight: 68.5KG (Net), 108.5 (Gross)

  • Dimensions: 560x590x2275MM (Product), 678x708x2200MM (Package)

• Warranty: 10 years

Datasheet

Delivery Disclaimer

Please be advised that our home batteries are very heavy and classified as dangerous goods, requiring handling and transport by qualified freighters. As such, the shipping company does not provide tracking services and follows a ground level delivery policy. For customers in multi-story buildings or blocks of flats, deliveries will be made to the ground floor entrance only; the courier is unable to carry items up stairs.

We recommend arranging for assistance at the time of delivery if needed. Thank you for your understanding.

Please note: this listing is for the home energy storage system only. We do offer local installation service (south Wales based). Please fill out the quotation form and our installation team will get back to you.
