Midea MHELIOS Flex - H Low Voltage Outdoor Energy Storage Battery and Hybrid Inverter (optional)

£1150 ex. VAT, 5kWh, easy installation, expandable

£2280.00

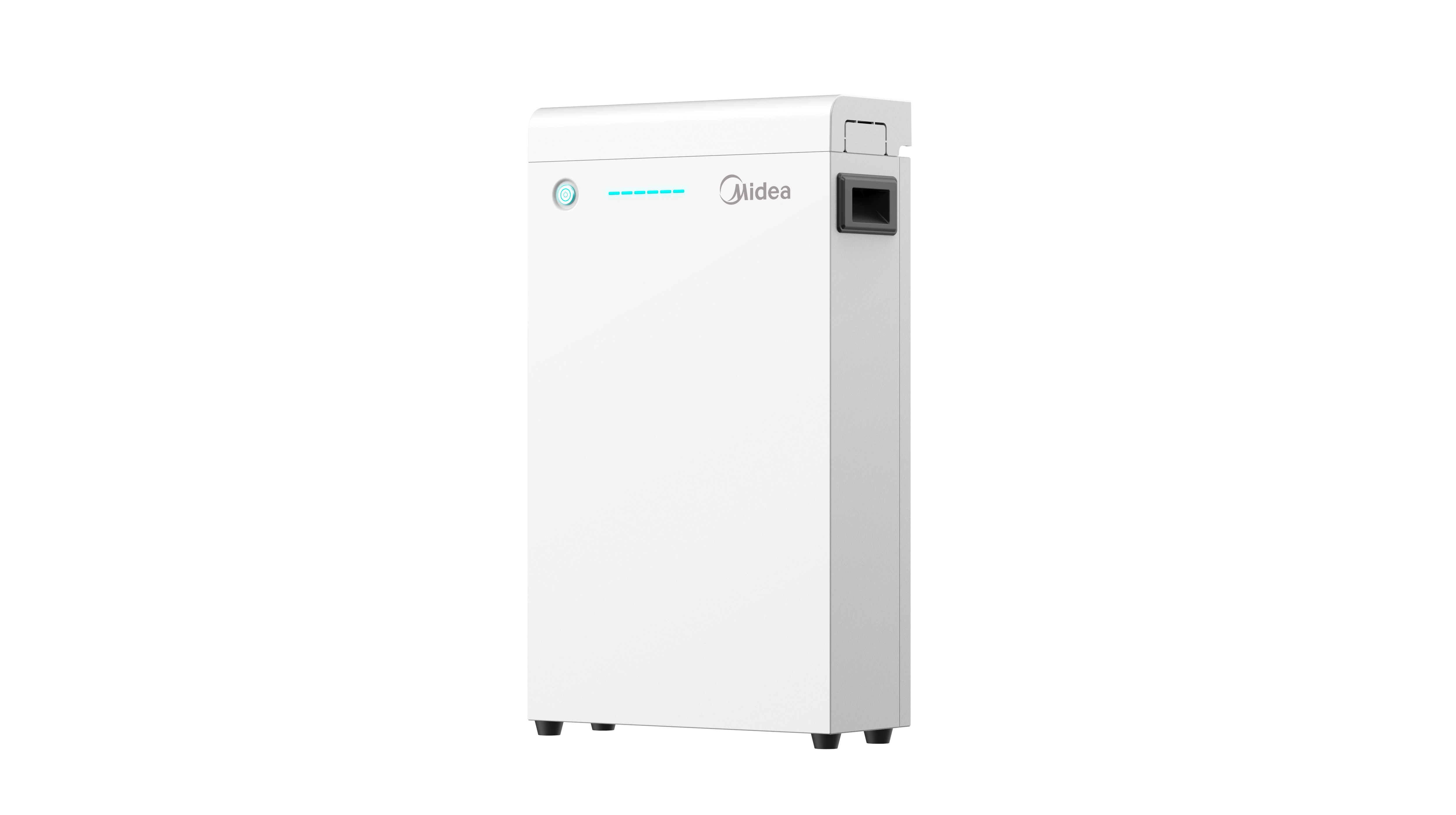

Midea MHELIOS Flex - H BL5.1-A-M1 Outdoor Battery IP65

Advanced Low Voltage 5.12kWh LFP ESS with seamless Integration and Expansion

Efficient System Integration:

  • Perfectly pairs with Midea Hybrid Inverter for both new installations and existing PV systems.

  • Connects with PV panels and the grid, offering a comprehensive home load management system.

Operating Voltage Range:

  • 45.6~56.16V, ideal for household energy storage applications

Built-in BMS:

  • Manages and monitors cell information, including voltage, current, and temperature. Balances cell charging to extend cycle life.

Easy Installation:

  • Quick and easy 10-minute installation by a single person. Please consult the installation guide.

  • Choose between wall-mounted or floor-mounted setups to suit various installation needs.

  • Features automatic module ID assignment with a simple one-button operation.

Safe and Reliable:

  • IP65 rated protection, suitable for outdoor installation.

  • Remote diagnosis and real-time data monitoring for peace of mind.

  • Includes over-discharge, over-charge, over-current, and high/low temperature protection. Automatically manages charge, discharge, and balance states.

  • Utilizes CATL battery cells, renowned for safety and longevity, with up to 6000 cycles.

Flexible Expansion:

  • Designed for scalability, supporting parallel operation of up to 4 units for increased capacity.

The Midea MHELIOS Flex - H series represents a leap in hybrid inverter and energy storage technology, offering a blend of efficiency, flexibility, and reliability. Whether you're upgrading an existing system or installing a new one, Midea provides a seamless, safe, and smart way to manage your home's energy needs.

Midea MHELIOS Flex - H EH-5K-A-M0 5kW Single-Phase Hybrid Inverter (optional)

Smart, Efficient, and Flexible

Smart Energy Management:

  • Harness free solar energy to power your air conditioner, eliminating electricity anxiety.

  • Smart home scene control helps eliminate unnecessary additional costs, optimising your energy usage.

Flexible Application:

  • Supports multiple parallel systems for diverse solutions, accommodating up to 6 units.

  • Versatile for various scenarios: PV only installation, battery addition, and compatibility with existing PV systems.

Outstanding Performance:

  • Ultra-fast UPS Class switching time (<10ms), ensuring uninterrupted power for essential loads.

  • Achieve maximum efficiency of up to 97.8%, making the most of your solar investment.

Please note: this listing is for the home energy storage system alone, there is no installation service included. Should you require installation service, please fill out the quotation form and our installation experts will get back to you.

Specifications

Midea MHELIOS Flex - H 5.1kWh Midea Low Voltage Energy Storage BL5.1-A-M1 (general)

Capacity:

5.12kWh

Nominal valtage:

51.2V

Nominal charging/discharging current:

50A

Nominal charge/discharge power:

2560W

Max. number of parallel groups:

6

Battery type:

Lithium-iron phosphate (LiFePO4)

Protection class:

IP65

Weight:

45kg

Dimension(W*H*D):

396*681*154.5mm

Installation:

Wall-mounted / Floor stand

Certificates:

UN38.3, IEC62619, IEC62040-1,etc

Warranty:

10 years


Midea MHELIOS Flex - H Single-Phase Hybrid Inverter (General)

EH-5K -A-M0

Capacity :

5kWh

Dimensions (L*W*H):
482 x 503 x 183mm

Net Weight:

21.5kg

App Control:

QEnergy (optional purchase at £199)

Warranty:

5 Years

IP Rating :

IP65

Output Voltage:

230V

Input Frequency:

50Hz

UPS Time:

<10ms

Output Power :

5000W

Efficiency:

Max 97.8%

Inverter Certificates:

EMC

EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12

Safety standards

IEC 62109-1 / 2, IEC62040-1

Grid standards

VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105,EN 50549, G99, XP C15-712-3, UNE 217002


EH-5K -A-M0 (PV INPUT)

Recommended max PV input power

7500W

Max Input Voltage:

600V

No. of MPP Trackers:

2

MPPT Input Current:

13A

MPPT input short circuit current:

18A


EH-5K -A-M0 (Battery/DC INPUT)

Battery type

Lithium-ion, Lead-acid

Battery voltage range (V)

42-58

Max. charging / discharging power (W)

5000

Max. charging/discharging current (A)

100/100


EH-5K -A-M0 (Output / Input AC)

Nominal AC power (W)

5000

Max. AC power from utility grid (VA)

10000

Max. AC current output to utility grid (A)

21.7

Max. AC current from utility grid (A)

43.4

Nominal grid voltage

L / N / PE, 230 Vac, 50 / 60 Hz


EH-5K -A-M0 (Output AC EPS)

Max. apparent power (VA)

5000

Max. output current (A)

22.7

Nominal voltage, frequency

220 V / 230 V, 50 / 60 Hz

Switch time

10 ms default
