Midea MHELIOS Flex - H Three-phase Hybrid Inverter and High Voltage Energy Storage Battery

Midea MHELIOS Flex - H Three-Phase Hybrid Inverter and High Voltage Energy Storage Battery

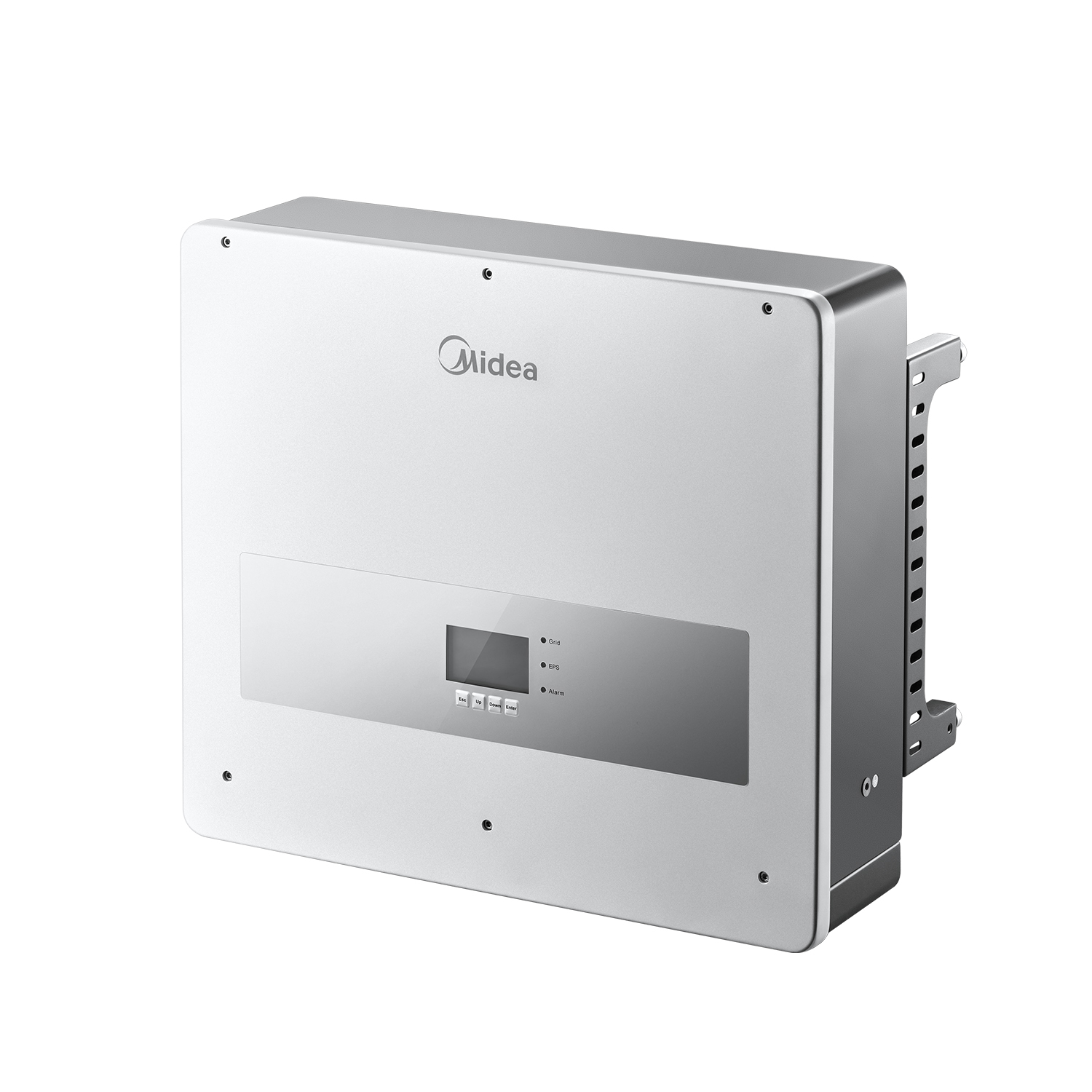

Midea MHELIOS Flex - H EH-10KT-A-M0 10kW Three-Phase Hybrid Inverter: Smart, Efficient, and Flexible

Smart Energy Management:

• Free solar energy to power the air-condi-

  tioner avoiding electricity anxiety

• Eliminate unnecessary additional costs with

  smart home scene control

Durable and rugged design:

• Both inverter and batteries are IP65 protected, suitable for indoor and outdoor uses

• Rugged design and well constructed to withstand the elements

Flexible Application:

• Maximum two battery inputs.

• Supports multiple parallel systems for diverse solutions, accommodating up to 6 units.

• Versatile for various scenarios: PV only installation, battery addition, and compatibility with existing PV systems.

Outstanding Performance:

• EPS Supports 100% unbalanced loads

• Ultra-fast UPS Class switching time (<10ms), ensuring uninterrupted power for essential loads.

• Achieve maximum efficiency of up to 98.2%.

Midea MHELIOS Flex - BH10.2-A-M0 10.24kWh LFP Battery: Advanced High Voltage Energy Storage

Easy installation:

• Perfectly pairs with Midea Three-phase Hybrid Inverter for both new installations and existing PV systems.

• Connects with PV panels and the grid, offering a comprehensive home load management system.

Operating Voltage Range:

• 350-435V

Built-in BMS:

• Manages and monitors cell information, including voltage, current, and temperature. Balances cell charging to extend cycle life.

Easy Installation:

• Quick and easy installation.

• Modular design, Floor-stand setups for convenient installation.

• Features automatic module ID assignment with a simple one-button operation.

Safe and Reliable:

• Remote diagnosis and real-time data monitoring for peace of mind.

• Extremely low battery self-consumption in sleep mode

• Includes over-discharge, over-charge, over-current, and high/low temperature protection. Automatically manages charge, discharge, and balance states.

• Utilizes CATL battery cells, renowned for safety and longevity, with up to 6000 cycles.

Flexible Expansion:

• Designed for scalability, supporting parallel operation of up to 4 units for increased capacity.

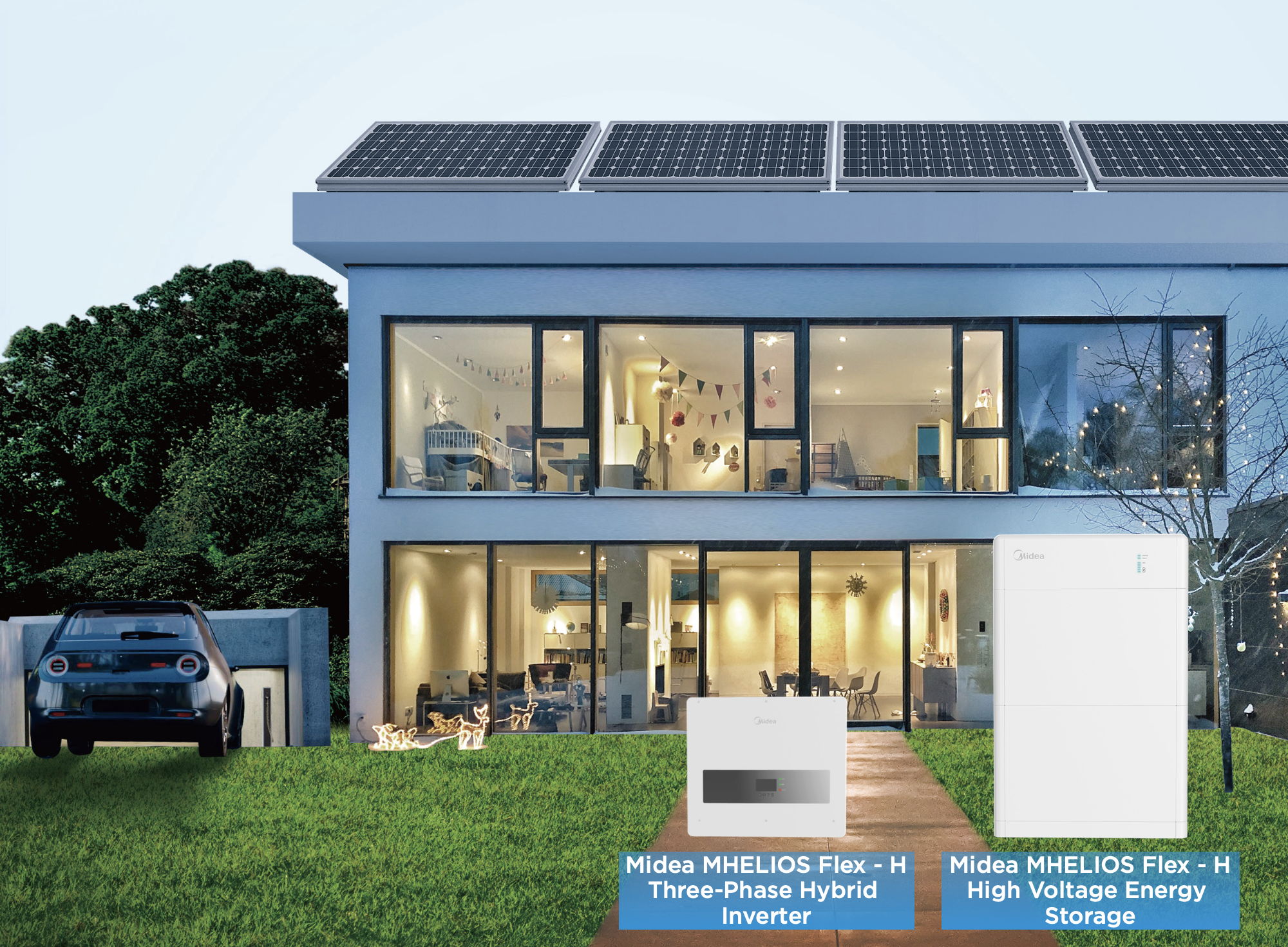

The Midea MHELIOS Flex - H series represents a leap in hybrid inverter and energy storage technology, offering a blend of efficiency, flexibility, and reliability. Whether you're upgrading an existing system or installing a new one, Midea provides a seamless, safe, and smart way to manage your home's energy needs.

Please note: this listing is for the home energy storage system alone, there is no installation service included. Should you require installation service, please fill out the quotation form and our installation experts will get back to you.

Specifications

Midea MHELIOS Flex - H Three-Phase Hybrid Inverter Dual MPPT (General)

EH-10KT -A-M0

Dimensions (L*W*H):
586.6 x 515 x 261.2mm

Net Weight:

37kg

App Control:

QEnergy

Warranty:

5 Years, extendable to 10 years

IP Rating :

IP65

Output:

Nominal output power (W): 10000

Nominal output voltage: 3 / N / PE, 230 / 400 Vac,50 / 60 Hz

Rated output current (A): 14.5

Input:

Recommended max. PV input power (Wp): 15000(7500/7500)

Max. DC voltage (V): 1000

Max. input current (A): 25 / 25

Max. short current (A): 30 / 30

No. of MPP trackers: 2

No. of battery input: 2

Nominal charging / discharging power (W): 10000(5000/5000)

Output / Input AC (Grid side):

Nominal AC power (W): 10000

Max. AC power from utility grid (VA): 20000

Max. AC current output to utility grid (A): 16

Max. AC current from utility grid (A): 29

Nominal grid voltage: 3 / N / PE, 230 / 400 Vac ,50 / 60 Hz

UPS Time:

<10ms

Efficiency:

Max 98.2%

Inverter Certificates:

EMC

EN61000-1, EN61000-2, EN61000-3, EN61000-4

Safety standards

IEC 62109-1 / 2, IEC62040-1

Grid standards

VDE V 0124-100, V 0126-1-1, VDE-AR-N 4105, EN 50549, G99, UTE C15-712-1, UNE 217002

Midea MHELIOS Flex - H 10.2kWh Midea High Voltage Energy Storage BH10.2-A-M0 (general)

Capacity:

10.24kWh

Nominal valtage:

400V

Nominal charging/discharging current:

12A/15A

Max charge/discharge power:

2560W

Max. number of parallel groups:

6

Battery type:

Lithium-iron phosphate (LiFePO4)

Protection class:

IP65

Weight:

110kg

Dimension(W*H*D):

708 x 1100 x 170mm

Installation:

Floor stand

Certificates:

UN38.3, IEC62619, IEC62040-1,etc

Warranty:

10 years
