Photonic Universe Off-grid Solar Kits

Photonic Universe P5000M-2500

Complete 5kW Off-Grid Power System with 5.12kWh LiFePO₄ Battery & 2.5kW Solar Array

Model: P5000M-2500 | Fully Integrated | Plug-and-Play | UK Ready

---

Power Independence, Delivered in a Box

The P5000M-2500 is a premium, all-in-one off-grid power solution engineered for reliability, portability, and ease of use. Perfect for off-grid homes, emergency backup, remote worksites, or sustainable living, this system delivers 5kW of continuous AC power from a high-capacity 5,120Wh LiFePO₄ battery, paired with a 2.5kW (6 × 430W) high-efficiency solar array for fast, clean charging.

Unlike traditional off-grid setups that require complex wiring and configuration, the P5000M-2500 arrives fully pre-wired and integrated. Simply connect the included solar panels using their MC4 connectors—and you’re generating usable power in minutes. No electrician, no tools, no guesswork.

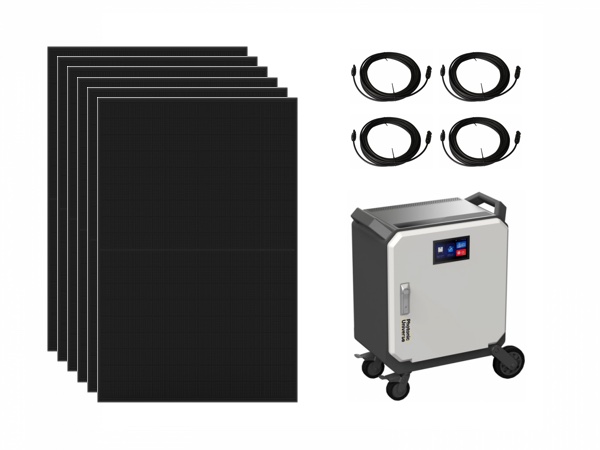

What’s Included

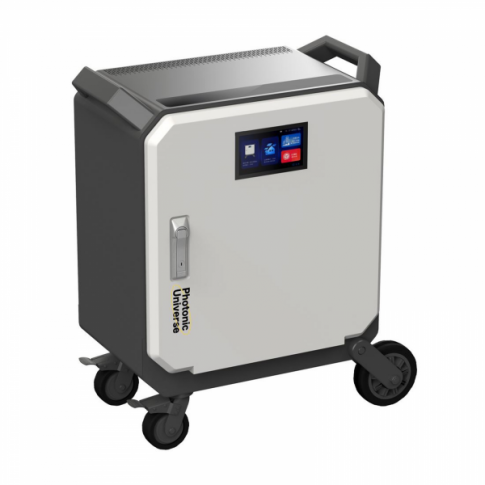

- P5000M Portable Solar Generator

(5,120Wh LiFePO₄ battery, 5kW pure sine wave inverter, dual MPPT charge controllers, AC/DC distribution, monitoring display, and output sockets)

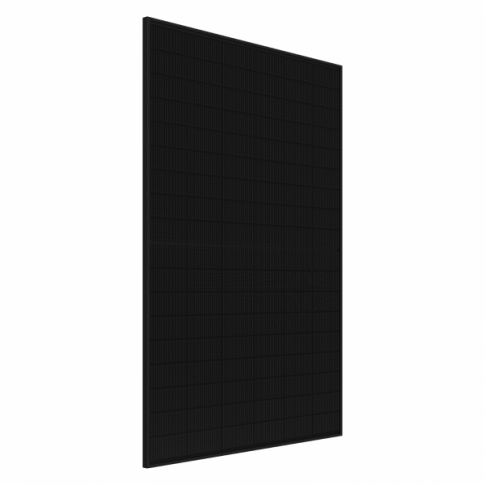

- 6 × Sharp NU-JC430B Full Black Monocrystalline Solar Panels

(430W each, 2.58kW total, featuring TOPCon technology for superior performance in low light and high heat)

- 2 × 10m 6mm² MC4 Extension Cables

(TUV-certified, high-temp XLPE insulation for safe, durable outdoor use)

Key Features

✅ True Plug-and-Play Design

All critical components—battery, inverter, charge controllers, safety disconnects, and monitoring—are pre-installed in a single rugged unit.

✅ High-Performance LiFePO₄ Battery

5,120Wh capacity with 6,000+ cycles at 80% DoD—designed to last over a decade with daily use.

✅ Expandable Solar Input

Supports up to 7kW of solar input via dual MPPT inputs (500V / 14A each). Start with 2.5kW and expand as needed.

✅ Robust & Portable

IP65-rated enclosure, integrated wheels and handles, and industrial-grade cooling make this system ideal for both stationary and mobile applications.

✅ Smart Monitoring

Track energy production, battery status, and system performance in real time via the Power Zero App (Wi-Fi/Bluetooth) or the built-in LCD display.

✅ Built for the UK & Beyond

Includes UK-compliant AC outlets and meets relevant safety standards for residential and commercial use.

Technical Highlights

- AC Output: 5,000W total (4 × 2,000W sockets + 5kW EPS port)

- Battery Chemistry: LiFePO₄ | Cycle Life: 6,000+ @ 80% DoD

- Solar Input: Up to 7,000W (dual MPPT, 500V max per string)

- Included Solar Array: 6 × 430W Sharp panels (2.58kW)

- Charging Options: Solar, standard AC (2kW), or fast AC charge (5kW, hardwired)

- Operating Temp: 0°C to +40°C

- Weight: 93 kg | Dimensions (with base): 722 × 809 × 399 mm

- Warranty: The Portable Solar Generator is covered by a 5 year warranty and the solar panels in this kit are covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%.

Ideal For

- Off-grid cabins & rural homes

- Emergency backup during power outages

- Construction sites & remote field operations

- Glamping sites, eco-lodges, and mobile living (vans, caravans)

- Sustainable energy projects and disaster relief

Trusted by Thousands Across the UK

Photonic Universe has supplied renewable energy systems to homes and businesses nationwide—backed by expert UK-based support, free technical assistance, and fast nationwide delivery.

Ready to go off-grid?

Order today and get clean, reliable power—without the complexity.
