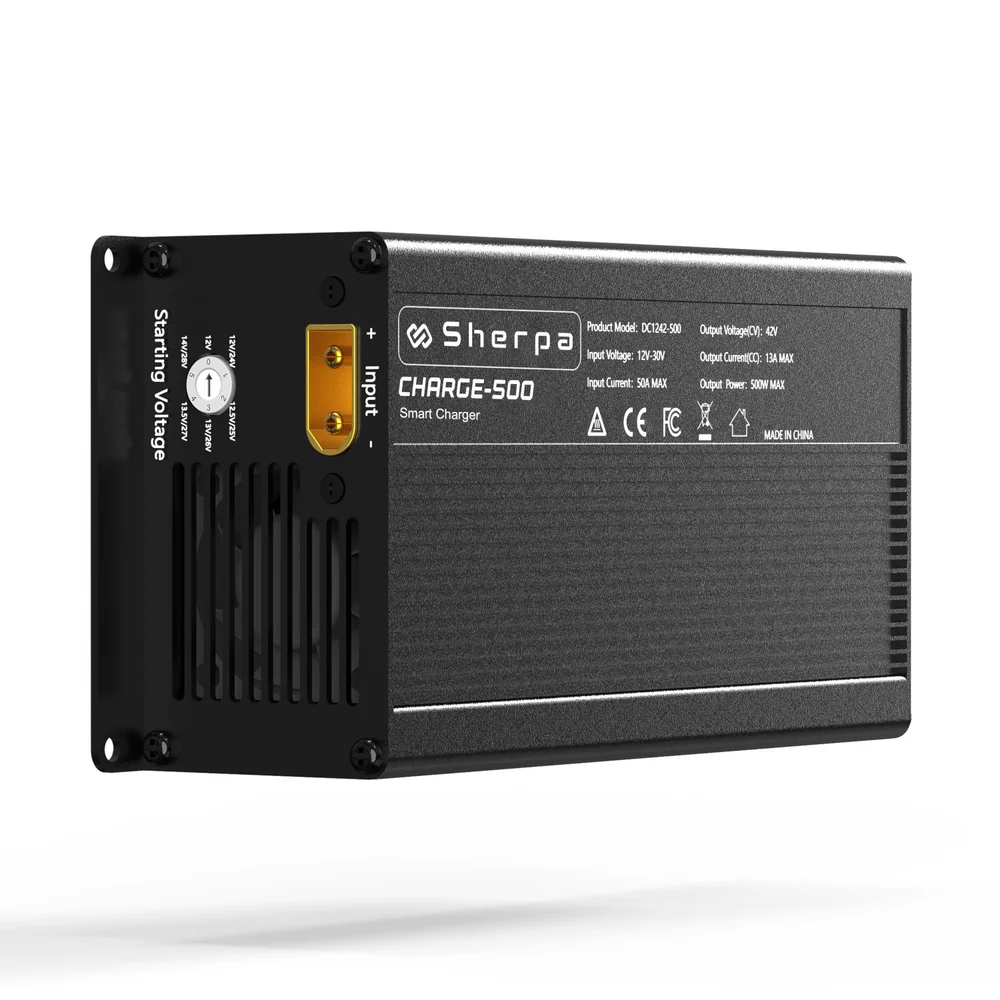

Sherpa CHARGE-500 Smart Charger
Charge on the go
£299.00
The CHARGE-500 is a user-friendly, rapid onboard Smart Charger, designed to charge your
system while on the go. It is simple to install and has automatic voltage detection that enables it to
function only when the engine is running to prevent any vehicle battery drain. The CHARGE-500
is built for road users with onboard power systems that cannot be charged easily from mains or solar.
It can however, work with solar in a hybrid setup.

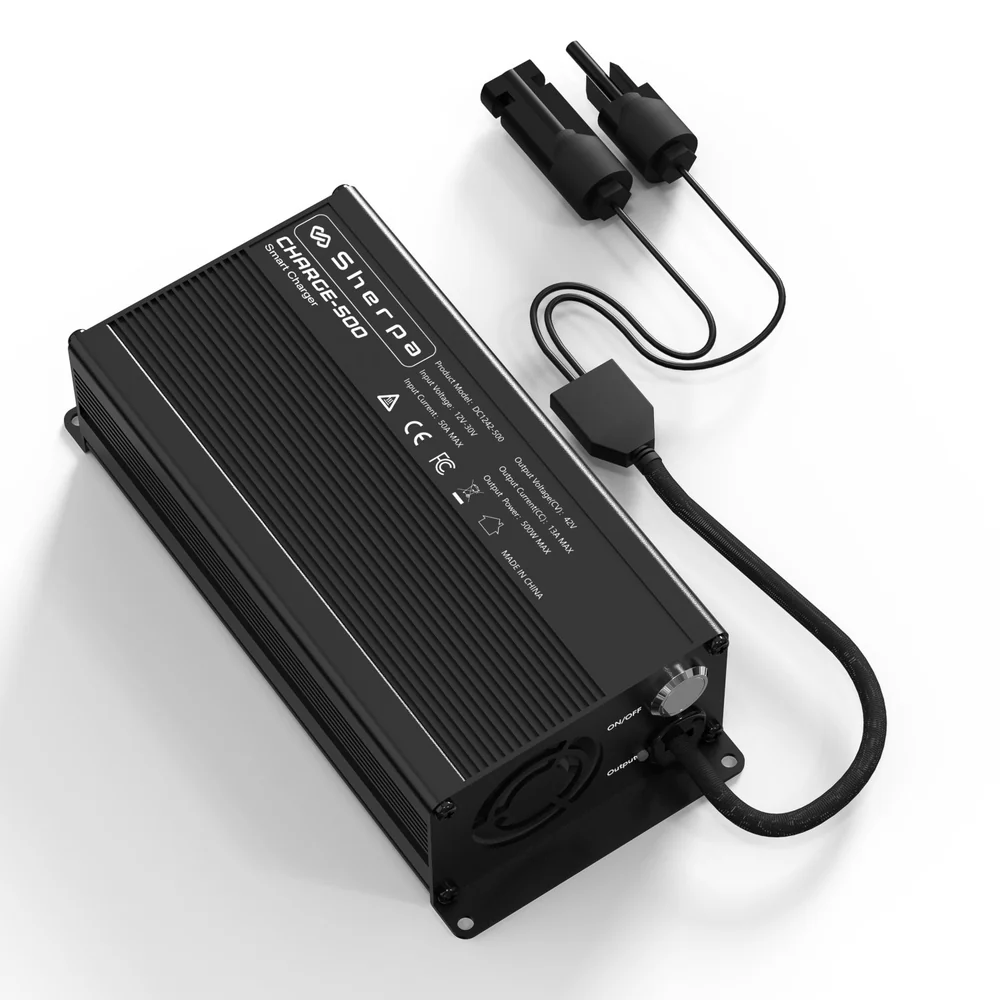

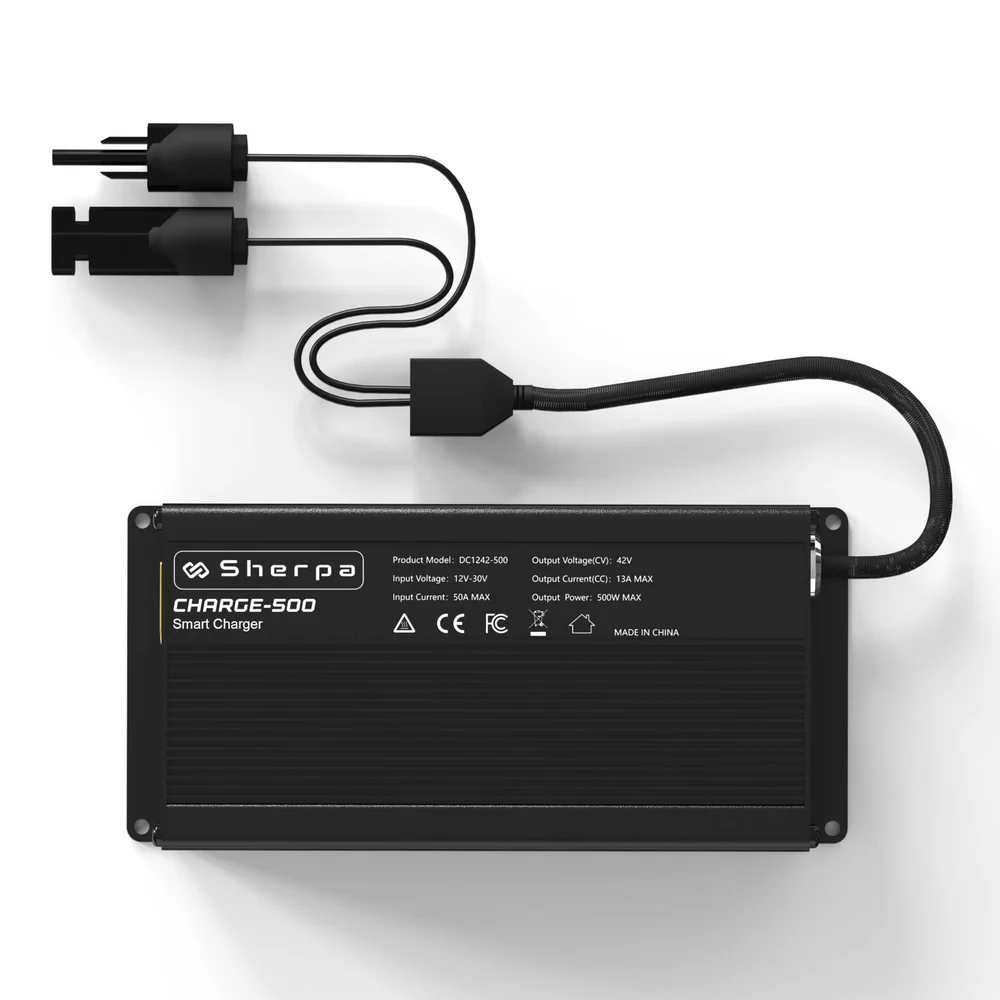

The CHARGE-500 has MC4 solar type connectors that are easily adapted to work with the
Sherpa Portable Power Station range via their built-in MPPT, offering a faster 42V, 500W charge.
The CHARGE-500 will charge your portable power unit up to five times faster. The equivalent
solar panel area required for the same charge rate would be between one and two square meters
Key Features
⚡️ Output Power
500W
⚡️ Output Voltage
42V
⚡️ Input Voltage
12-30V
🛡️ Warranty
5 Years
⚖ Weight
2.5kg

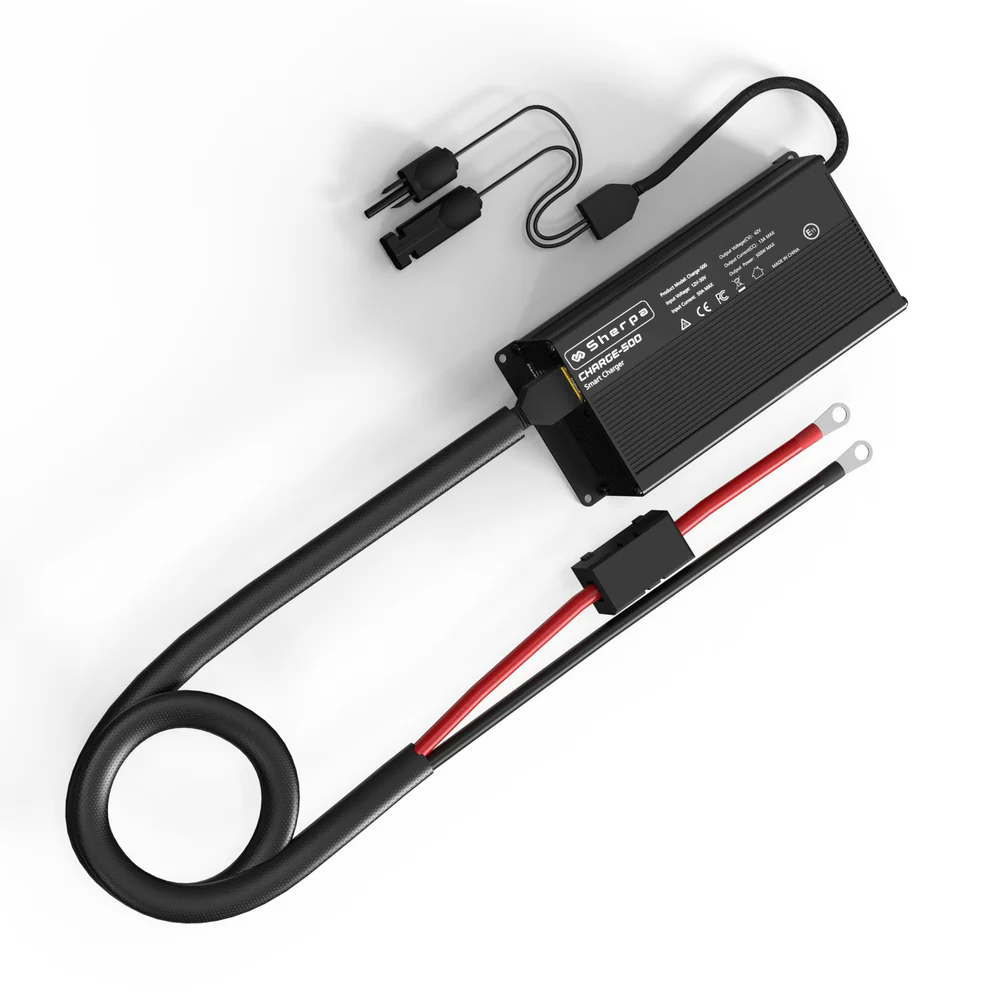

Items included
1 x CHARGE-500 Smart Charger
1 x 5m, fused (100A) input power cable set
1 x mini screwdriver
User Manual
Input: | 12-32V, 50A Max |
Fuse: | 100A |
Output: | 42V, 13A Max |
Power: | 500W |
Standby Load: | ~0.1A when OFF and ~0.26A when ON |
Protection: | Short-circuit, high voltage, low voltage, overheat |
Operating Temperature: | -10°C~55°C/14°F~131°F |
Storage Temperature: | 10°C~45°C/50°F~113°F |
Heat Dissipation: | Fan cooled |
Length (L): | 193mm |
Width (W): | 90mm |
Height (H): | 52mm |
Weight: | 2.5Kg |
